XR7038-F

  • 31,751kg Capacity
  • 11.63m Lift Height
  • 6.70m Forward Reach
  • 300 hp (Tier 4F) Engine

With the ability to lift an incredible 31,751kg, the XR7038 is the largest capacity telehandler in North America.

The multi-award winning XR7038 is North America’s largest rough terrain telehandler. Designed to lift up to 31,751kg, this machine is suited to heavy-duty applications, such as in the mining and oil & gas sectors.

  • 360° operator visibility
  • Rear back up camera
  • Suspension seat
  • Ductile steel manifold
  • Easy service access
  • Easy cab mounted grab handles
  • Protected tilt & extend cylinders
  • Master disconnect switch
  • Steel hydraulic & fuel tanks
  • Boom lift point
  • Long life Lexan labels
  • Manual lowering valve (cylinders)
  • Suspended pedals
  • Large cross section boom
  • Large capacity fuel tank
  • Easy tie downs
  • Trunnion mounted sway cylinders
  • Heavy duty pre-cleaner
  • Melonite pins
  • Additional high pressure hydraulic filter
  • Standard auxiliary hydraulics
  • Multi-function display screen
  • Steel dash
  • Long life boom rollers
  • Center mounted powertrain
  • Solid steel plate chassis
  • Dual batteries
  • Rear axle stabilization (RAS)
  • Cab step
  • Back up alarm with light
  • Front camera on carriage
  • Xtreme OnSite™ telematics
Class Carriage

F

Capacity Weight

31,751kg

Lift Height

11.63m

Forward Reach

6.70m

Frame Leveling L/R

Machine Weight

52,163kg

Engine

Cummins 9L 300 hp (Tier 4F)

Axle

Kessler 101.2228.3

Transmission

Dana T36000

Fuel Capacity

567.8L

Tires

Foam filled 29.5R29

Hydraulic Flow (per min)

348.2L

Hydraulic Pressure

289.5bar

Hydraulic Oil Capacity

529.9L

Length to Fork Face

8.45m

Width

3.42m

Height

3.53m

Wheel Base

4.77m

Ground Clearance

520.7mm

Turning Radius

7.46m

Options

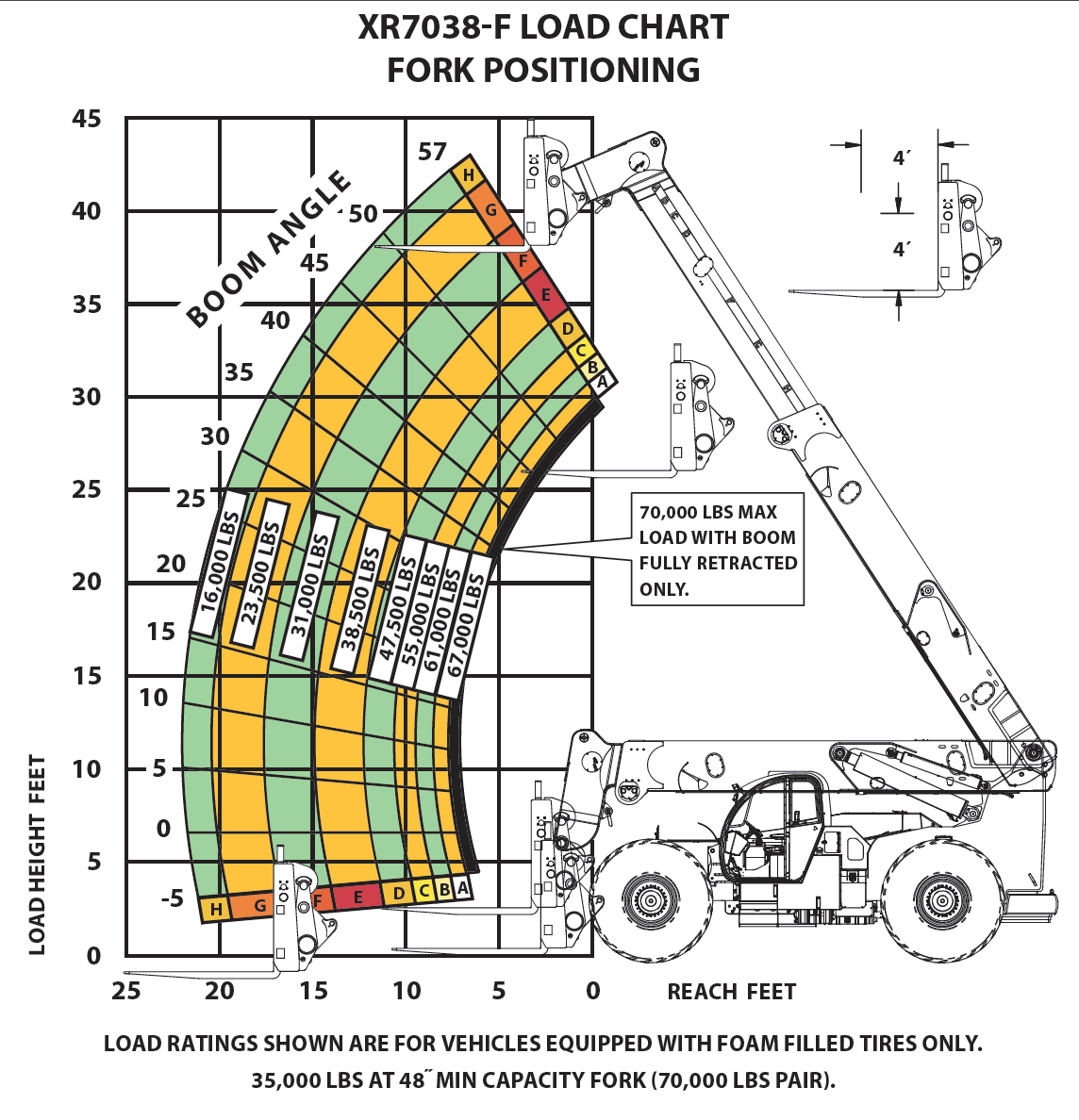

Load Chart

XR7038-F Load Chart

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Canada is authorized to carry our Xtreme warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
