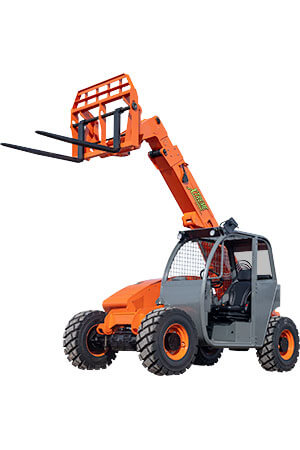

XR619-A

  • 2,721kg Capacity
  • 5.79m Max Lift Height
  • 3.35m Forward Reach
  • 74 hp (Tier 4F) Engine
  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Melonite pins
  • Additional high pressure hydraulic filter
  • Standard auxiliary hydraulics
  • Individual gauges/switches
  • Steel dash
  • Solid steel plate chassis
  • Long life boom rollers
  • Back up alarm
  • Electrical aux hydraulic control
  • Battery
  • Side mount engine
  • Limited slip front axle
  • Hydrostatic rivets
  • Fiberglass engine hood
Capacity Weight

2,721kg

Lift Height

5.79m

Forward Reach

3.35m

Frame Leveling L/R

N/A

Machine Weight

4,672kg

Engine

74 hp (Tier 4F)

Axle

Comer 128

Transmission

Linde

Fuel Capacity

64.3L

Tires

pneumatic 12.00 x 16.5

Hydraulic Flow (per min)

98.4L

Hydraulic Pressure

220.6bar

Hydraulic Oil Capacity

90.8L

Length to Fork Face

3.88m

Width

1.8m

Height

1.9m

Wheel Base

2.36m

Ground Clearance

274.3mm

Turning Radius

3.35m

Options

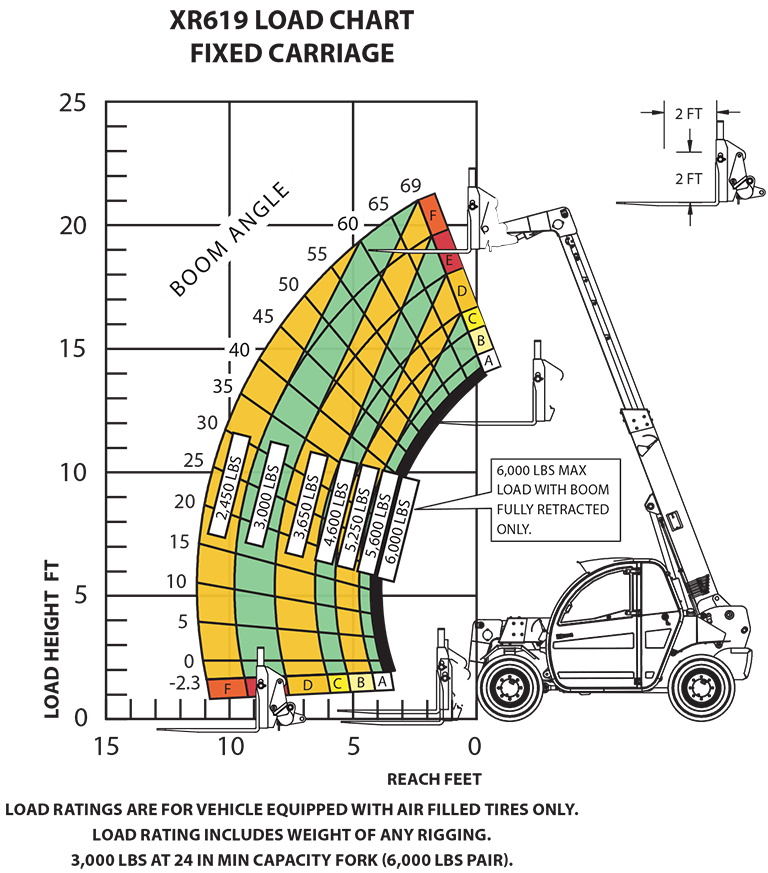

Load Chart

XR619.-A Load Chart

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Canada is authorized to carry our Xtreme warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
