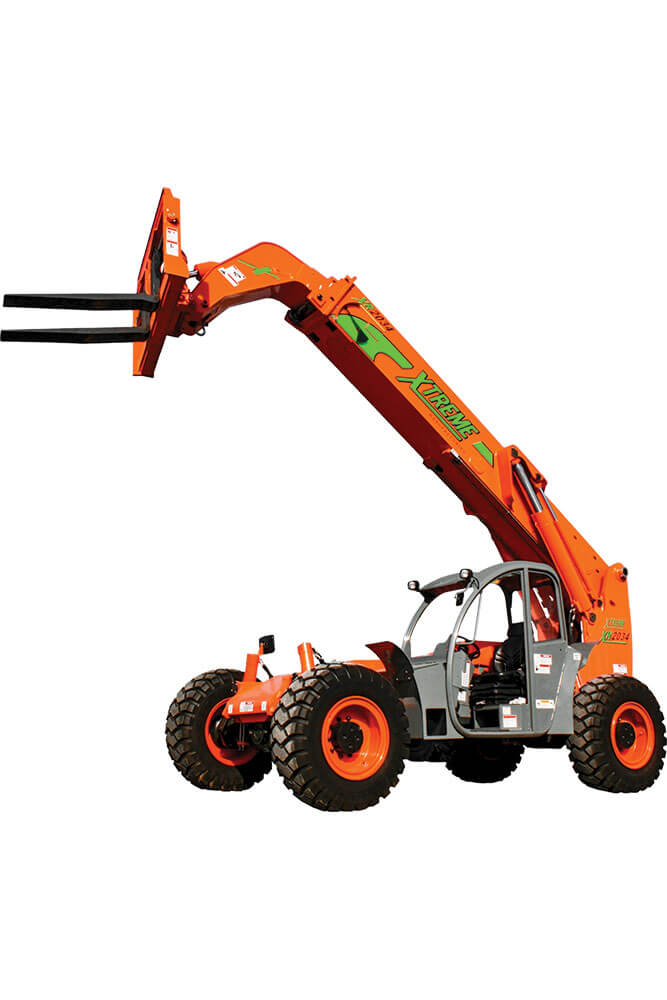

XR2034-C

  • 9,072kg Capacity
  • 10.36m Lift Height
  • 5.05m Forward Reach
  • 134 hp (Tier 4F) Engine

Increased capacity, while still maintaining excellent jobsite maneuverability.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Large capacity fuel tank
  • Y˝ frame handle
  • Trunnion mounted sway cylinders
  • Heavy duty pre-cleaner
  • Melonite pins
  • Additional high pressure hydraulic filter
  • Standard auxiliary hydraulics
  • Individual gauges/switches
  • Steel dash
  • Steel hood
  • Center mounted powertrain
  • Solid steel plate chassis
  • Long life boom rollers
  • Rear axle stabilization (RAS)
  • Cab step
  • Back up alarm with light
  • Dual batteries
  • Electrical aux hydraulic control
Class Carriage

C

Capacity Weight

9,072kg

Lift Height

10.36m

Forward Reach

5.05m

Frame Leveling L/R

Machine Weight

18,801kg

Engine

Deutz 3.6L 134 hp (Tier 4F)

Axle

Dana 213

Transmission

Dana T20000

Fuel Capacity

272.5L

Tires

Foam Filled 17.5 x 25

Hydraulic Flow (per min)

185.4L

Hydraulic Pressure

275.7bar

Hydraulic Oil Capacity

219.5L

Length to Fork Face

6.73m

Width

2.59m

Height

2.71m

Wheel Base

3.74m

Ground Clearance

381mm

Turning Radius

4.82m

Options








Load Chart

XR2034-C Load Chart

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Canada is authorized to carry our Xtreme warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
