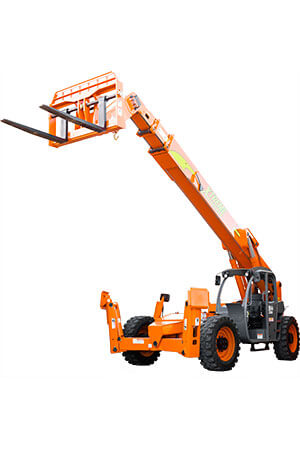

XR1555-C

  • 6,804kg Capacity
  • 16.76m Max Lift Height
  • 11.7m Forward Reach
  • 120 hp (Tier 4F) Engine
  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Wider outrigger stance
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries Cab step
  • Cab step
Class Carriage

C

Capacity Weight

6,804kg

Lift Height

16.76m

Forward Reach

11.7m

Frame Leveling L/R

11°

Machine Weight

17,445kg

Engine

120 hp (Tier 4F)

Axle

Dana 213

Transmission

Dana T20000

Fuel Capacity

378.5L

Tires

Foam Filled 15.5 x 25

Hydraulic Flow (per min)

185.4L

Hydraulic Pressure

262bar

Hydraulic Oil Capacity

234.7L

Length to Fork Face

7.84m

Width

2.56m

Height

2.51m

Wheel Base

3.58m

Ground Clearance

419mm

Turning Radius

4.26m

Options









Load Chart

XR1555-C Load Chart

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Canada is authorized to carry our Xtreme warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
