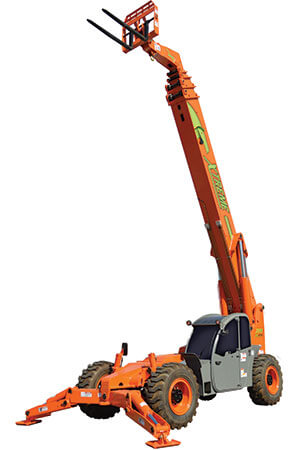

XR1285-B

  • 5,443kg Capacity
  • 25.9m Max Lift Height
  • 20.4m Forward Reach
  • 134 hp (Tier 4F) Engine
  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Wider outrigger stance
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries
  • Cab step
  • Electrical aux hydraulic control
Capacity Weight

5,443kg

Lift Height

25.9m

Forward Reach

20.4m

Frame Leveling L/R

Machine Weight

28,803kg

Engine

Cummins 4.5L 173 hp (Tier 4F)

Axle

Kessler 82.8416.3

Transmission

Dana T14

Fuel Capacity

272.5L

Tires

Foam Filled 16.00 x 25 – 28

Hydraulic Flow (per min)

185.4L

Hydraulic Pressure

275.7bar

Length to Fork Face

8.7m

Width

2.6m

Height

2.7m

Wheel Base

3.7m

Ground Clearance

381mm

Turning Radius

4.8m

Options








Load Chart

XR1285-B Load Chart

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

Ahern Canada is authorized to carry our Xtreme warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
