UL25

  • Max. working height: 9.6m
  • Overall width: 0.74m
  • Platform capacity (SWL): 159kg
  • Weight(AC): 390kg

Download Specifications (PDF)

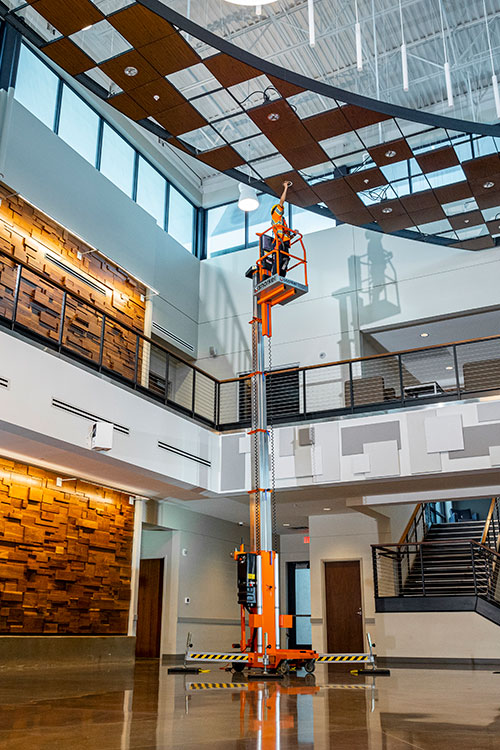

The Snorkel UL25 push-around mast lift is a lightweight and low cost indoor work platform. Designed with a small footprint and outriggers as standard, one person can easily set up and operate the UL25 for quick access.

Standard Features

  • Patented Girder Lock telescopic mast system
  • Integrated tilt-back system
  • Ground level entry
  • EZ Loader system for transport
  • Outrigger interlock indicators
  • Integrated battery charger (DC only)
  • Non-marking wheels & casters
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

9.6m

Max Platform Height

7.6m

Platform Length

0.56m

Platform Width

0.66m

Outrigger Footprint

2.06m x 1.99m

Overall Width

0.74m

Overall Length

1.26m

Stowed Height

1.99m

Tilt Back Length

2.6m

Tilt Back Height

1.95m

Platform Capacity (SWL)

159kg

Max Wind Speed

0m/s

Raise/Lower Time

43/23 seconds

Wheels

250mm x 64mm rear, 150mm casters front

Controls

push button

Wall Access

356mm

Power Source (AC)

120/220V AC 50HZ

Power Source (DC)

1 X 12V 105Ah battery

Weight (AC)

390kg

Weight (DC)

420kg

Options

  • Special paint colors
  • Tool tray
  • Laser locator
  • Environmental hydraulic oil

Outrigger Footprint

Snorkel UL Series Outrigge Ffootprint

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
