TM16E

  • Max. working height: 6.87m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 1.98m
  • Weight: 1,105kg

Download Specifications (PDF)

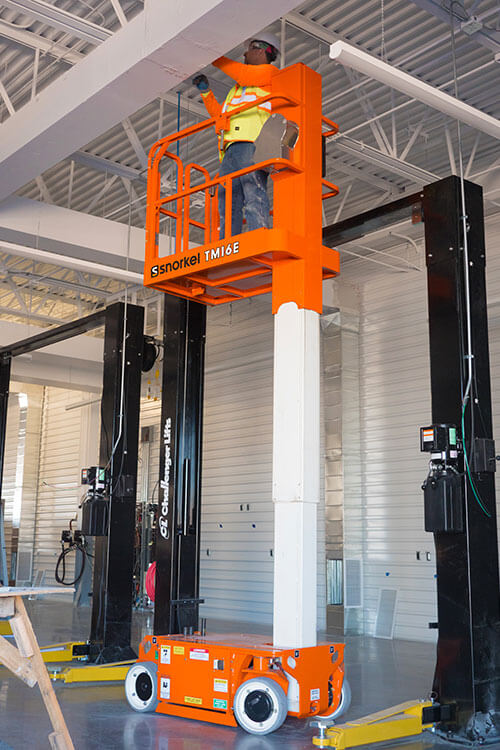

The Snorkel TM16E delivers the tallest working height in Snorkel’s line of self-propelled telescopic mast lifts. Featuring an electric drive system, this mast lift offers longer duty cycles on the job. Smooth proportional controls allows for precise positioning where needed most.

Standard Features

  • Roll-out deck extension
  • Proportional controls
  • Saloon-door style entry gates
  • Descent & tilt alarms
  • Emergency lowering at chassis controls
  • Non-marking rubber tyres
  • Crane lift points
  • Horn
  • 2 persons indoor
  • Selectable motion alarm
  • Integrated battery charger 110V 20A
  • Hour meter & on-board diagnostics display
  • 2 year parts & labour, 5 year structural warranty
Max Working Height

6.87m

Max Platform Height

4.87m

Platform Size (stowed)

0.68m x 0.99m

Platform Size (extended)

0.68m x 1.5m

Extension Deck Length

0.51 m

Overall Length

1.37m

Overall Width

0.76m

Stowed Height

1.98m

Ground Clearance

76mm

Platform Capacity (SWL)

227kg

Max Drive Height

4.87m

Max Wind Speed

0m/s

Max Drive Speed (stowed)

4.0km/h

Max Drive Speed (elevated)

0.6 km/h

Raise/Lower Time

12.5/10.5 sec

Gradeability

25%

Max Operating Slope (side to side)

1.5º

Max Operating Slope (front to back)

1.5º

Inside Turning Radius

0m

Outside Turning Radius

1.4m

Tyres

323mm non-marking rubber

Parking Brake

2 wheel, spring applied, electric release

Drive System

dual DC motors

Controls

proportional

Power Source

24V 220Ah batteries

Battery Charger

20 AMP

Weight

1,105kg

Options

  • Special paint colors
  • Environmental hydraulic oil
  • Order picker tray
  • Snorkel OnSite™ telematics

Turning Radius

TM12E Turning Radius

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
