TM12E

  • Max. working height: 5.65m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 1.67m
  • Weight: 1,016kg

Download Specifications (PDF)

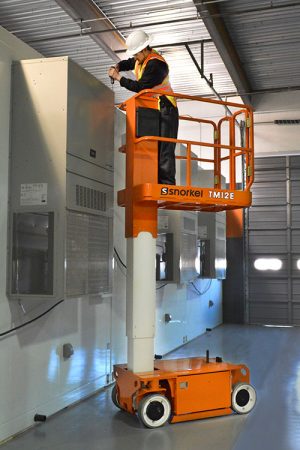

The new Snorkel TM12E is an electric drive version of the original Snorkel TM12 hydraulic drive telescopic mast lift. The Snorkel TM12E features an efficient electric drive system that delivers longer duty cycles, a zero inside turning radius, and a new electric braking system.

Capable of lifting up to 500 lbs. (227kg) to a platform height of up to 12 ft. (3.65m), the TM12E includes a roll-out deck extension as standard, plus a new upper control box with an integrated power to platform outlet, that is common with Snorkel’s electric slab scissor lift family.

Standard Features

  • Roll-out deck extension
  • Proportional controls
  • Saloon-door style entry gates
  • Descent & tilt alarms
  • Emergency lowering at chassis controls
  • Non-marking rubber tyres
  • Crane lift points
  • Horn
  • 2 persons indoor
  • 1 person outdoor (TM12E only)
  • Selectable motion alarm
  • Integrated battery charger 110V 20A
  • Hour meter & on-board diagnostics display
  • 2 year parts & labour, 5 year structural warranty
Max Working Height

5.65m

Max Platform Height

3.65m

Platform Size (stowed)

0.68m x 0.99m

Platform Size (extended)

0.68m x 1.5m

Extension Deck Length

0.51m

Overall Length

1.37m

Overall Width

0.76m

Stowed Height

1.67m

Ground Clearance

76mm

Platform Capacity (SWL)

227kg

Max Drive Height

3.65m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.0km/h

Max Drive Speed (elevated)

0.6 km/h

Raise/Lower Time

19 / 17 seconds

Gradeability

25%

Max Operating Slope (side to side)

Max Operating Slope (front to back)

Inside Turning Radius

0m

Outside Turning Radius

1.4m

Tyres

323mm non-marking rubber

Parking Brake

2 wheel, spring applied, electric release

Drive System

dual DC motors

Controls

proportional

Power Source

24V 220Ah batteries

Battery Charger

20 AMP

Weight

1,016kg

Options

  • Special paint colors
  • Environmental hydraulic oil
  • Order picker tray
  • Snorkel OnSite™ telematics

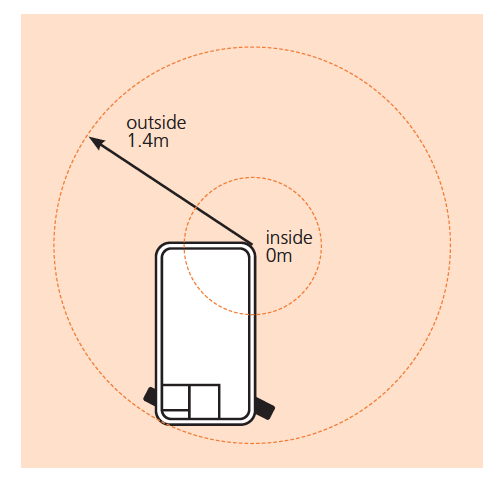

Turning Radius

TM12E Turning Radius

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
