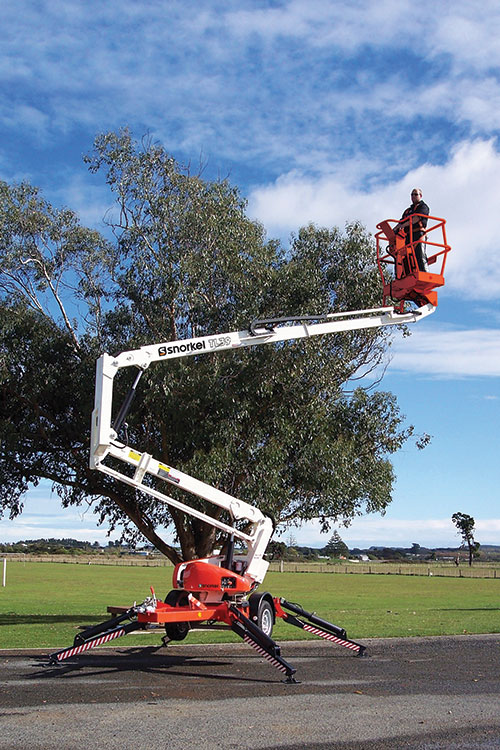

TL39

  • Max. working height: 13.5m
  • Platform capacity (SWL): 215kg
  • Stowed Height: 2.01m
  • Weight: 1,680kg

Download Specifications (PDF)

Standard Features

  • Articulating / telescopic boom configuration
  • Hydraulic outriggers
  • Electric controls at platform
  • Power line to platform
  • Hydraulic platform rotate
  • Integral road lighting board
  • Integrated automatic battery charger 110V-230V
  • Dual lanyard attachment points
  • 2 year parts & labour, 5 year structural warranty
Max Working Height

13.5m

Max Platform Height

11.5m

Max Working Outreach

6.4m

Platform Width

1.24m

Platform Depth

0.75m

Outrigger Footprint

4.0m x 3.6m

Towing Width

1.61m

Towing Length

5.1m

Stowed Height

2.01m

Platform Capacity (SWL)

215kg

Max Wind Speed

12.5m/s

Superstructure rotation

540° non-continuous

Tyres

185R14C

Controls

electric over hydraulic, variable speed

Power Source

24V DC battery

Power Options

gasoline; bi-energy (combustion & battery); AC electric, diesel

Weight

1,680kg

Options

  • Special paint colours
  • Work lights in platform
  • Airline to platform
  • Flashing amber light
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

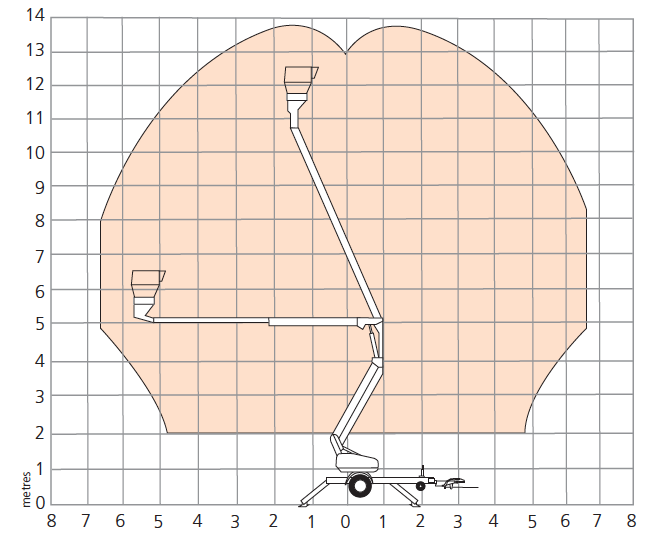

Working Envelope

TL39 Working Envelope

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
