Snorkel SR5719E

SR5719E

  • Max. lift height: 5.79m
  • Max. lift capacity: 2,600kg
  • Max. forward reach: 3.1m
  • Weight: 4,800kg

Download Specifications (PDF)

Request a Quote

The SR5719E is the electric version of the SR5719 rough terrain telehandler – an industry first. Its full-time 4-wheel drive is powered by lithium-ion batteries for long-lasting durable performance. Built compact, the SR5719E is highly maneuverable with reduced noise and zero emissions that is suitable for indoor use.

Standard Features

  • Lithium-ion batteries
  • Easy access to componenty for servicing
  • Full-time 4-wheel drive
  • 4-wheel steer
  • Selectable front, crab & coordinated steering modes
  • Auxiliary hydraulic circuit on the boom
  • Variable speed hydrostatic drive
  • Fully enclosed cab with heat
  • Proportional joystick
  • Illuminated gauge and switch panels
  • Color LCD display with machine & engine diagnostics
  • Adjustable suspension seat
  • LED road lights (2)
  • LED work lights on boom (2)
  • 2000 charging cycles/2 year*** lithium battery warranty
  • 2 year parts & labor, 5 year structural warranty
Max. Lift Height

5.79m
Max. Lift Capacity

2,600kg
Max. Forward Reach

3.1m
Overall Width

1.89m
Stowed Height

1.93m
Wheelbase

2.5m
Ground Clearance

220mm
Length to Fork Face

4.19m
Max. drive speed

12km/h
Raise/Lower Time

6.9 / 5 seconds
Outside Turning Radius

3.25m
Tires

12 x 16.5˝
Power Source

Lithium-ion 80V 400Ah batteries
Operating temperature

(-)20ºC to (+)45ºC
Hydraulic Pressure

230bar
Hydraulic Flow (per min)

80L
Hydraulic Oil Capacity

70L
Charger

on-board, single phase
Weight

4,800kg

Options

  • Special paint colors
  • Multiple options for carriages, tires and fork tines
  • External three-phase fast charger
  • Cold weather synthetic oil
  • Swivel hook
  • Hydraulic tank heater
  • Universal skidsteer attachment
  • Snorkel OnSite™ telematics

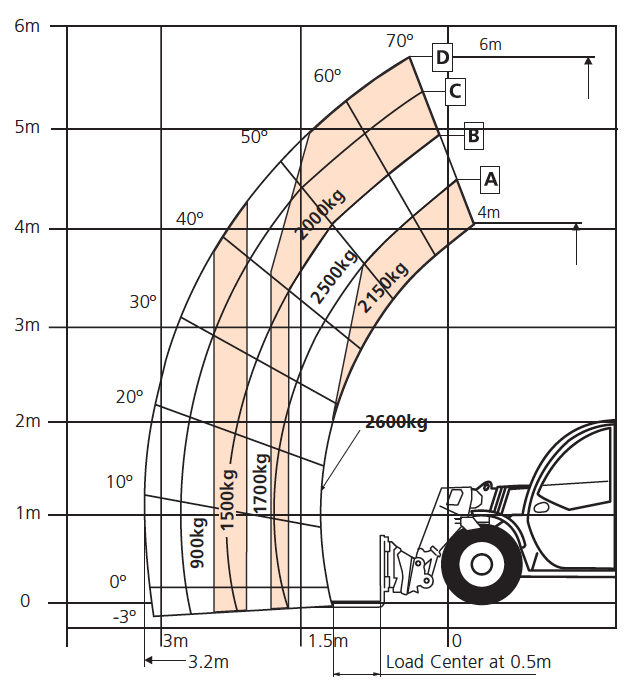

Load Chart

SR5719E Load Chart

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
