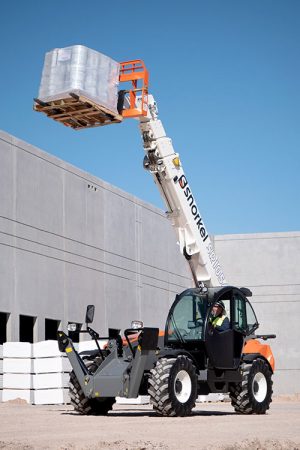

Snorkel SR1054

SR1054

  • Max. lift height: 16.4m
  • Max. lift capacity: 4,535kg
  • Max. forward reach: 12.6m
  • Weight: 12,180kg

Download Specifications (PDF)

Request a Quote

Standard Features

  • Fully enclosed cab with air conditioning & heat
  • Window wipers
  • Running lights
  • Manual pintle hitch
  • Backup alarm
  • PEB electrical boom socket
  • Constant front hydraulic flow
  • Heater plug
  • B class carriage adapter
  • Hydraulic attachment quick disconnect
  • LED front and rear work lights
  • LED work lights on boom (2)
  • Axle mounted outriggers
  • 2 year parts & labor, 5 year structural warranty
Max. Lift Height

16.4m
Max. Lift Capacity

4,535kg
Max. Forward Reach

12.6m
Overall Width

2.3m
Stowed Height

2.56m
Wheelbase

2.95m
Ground Clearance

350mm
Length to Fork Face

6.6m
Max. drive speed

30km/h
Raise/Lower Time

16 / 10.8 seconds
Frame leveling

11°
Hydraulic Flow (per min)

120L
Hydraulic Pressure

230bar
Hydraulic Oil Capacity

150L
Fuel Capacity

120L
Outside Turning Radius

4.2m
Tires

445/65 – 22.5˝
Power Source

Deutz TCD 3.6L Tier 4 Final diesel 100hp
Weight

12,180kg

Options

  • Special paint colors
  • Multiple options for carriages, tires, fork tines and attachments
  • Snorkel OnSite™ telematics

Load Chart

Snorkel SR1054 Load Chart

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
