SL30RTE

  • Max. working height: 11.0m
  • Platform capacity (SWL): 590kg
  • Stowed Height: 2.6m
  • Weight: 3,450kg

Download Specifications (PDF)

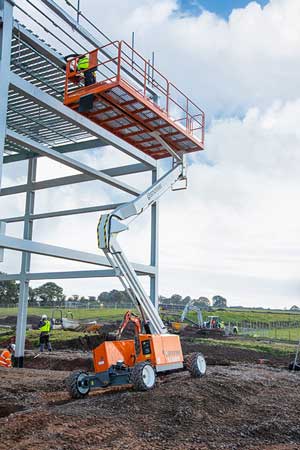

The Snorkel SL30RTE all-electric Speed Level delivers powerful endurance on all terrains. Capable of automatic self-leveling on gradients up to 50%, this lift is designed to work at height on sloped ground. Its powerful 4-wheel drive can be driven up to 0.5 mph (0.8km/h) at full height.

Standard Features

  • Two lithium-ion battery systems 222Ah
  • Automatic powered platform levelling
  • Powerful 4 wheel drive
  • Oscillating front axle
  • High grip, open tread deck
  • Descent alarm
  • High grip non-marking all terrain tyres
  • Digital proportional controls
  • Power line to platform
  • Fold-down guardrails
  • All motion alarm
  • Hour meter & on-board diagnostics display
  • Flashing amber light
  • 2000 charging cycles / 2 year* lithium battery warranty
  • 2 year parts & labour, 5 year structural warranty

*whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

Max Working Height

11.0m

Max Platform Height

9.0m

Platform Size (stowed)

1.72m x 4.23m

Platform Size (extended)

n/a

Extension Deck Length

n/a

Overall Width

2.13m

Overall Length

4.3m

Stowed Height

2.6m

Min Height (guardrails folded)

1.7m

Chassis Ground Clearance

305mm

Axle Ground Clearance

195mm

Platform Capacity (SWL)

590kg

Max Drive Height

9.0m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

5.4 km/h

Max Drive Speed (elevated)

0.8 km/h

Raise/Lower Time

24/36 seconds

Gradeability

50%

Max Outrigger Leveling (front to rear)

Max Outrigger Leveling (side to side)

13º

Inside Turning Radius

3.9m

Outside Turning Radius

5.64m

Tyres

26 x 12.00 – 12 foam filled

Controls

Digital Proportional Joystick

Drive System

4 wheel drive with hydraulic motors and flow dividers

Power Source

Li-ion batteries with integrated BMS

Operating Temperature

(-)77°F to (+)140°F

Charger

high frequency smart on-board 50A battery charger

Weight

3,450kg

Options

  • Special paint colours (1 colours)
  • Special paint colours (2 colours)
  • Environmental hydraulic oil
  • Additional 111Ah battery system
  • Tunnel package
  • Extra range tunnel package (444Ah)
  • Work light package
  • Driving light package
  • Extreme environment package

Levelling Capabilities

SL26SL/SL30SL Leveling Capabilities

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
