SL30RT

  • Max. working height: 11.0m
  • Platform capacity (SWL): 590kg
  • Stowed Height: 2.6m
  • Weight: 3,400kg

Download Specifications (PDF)

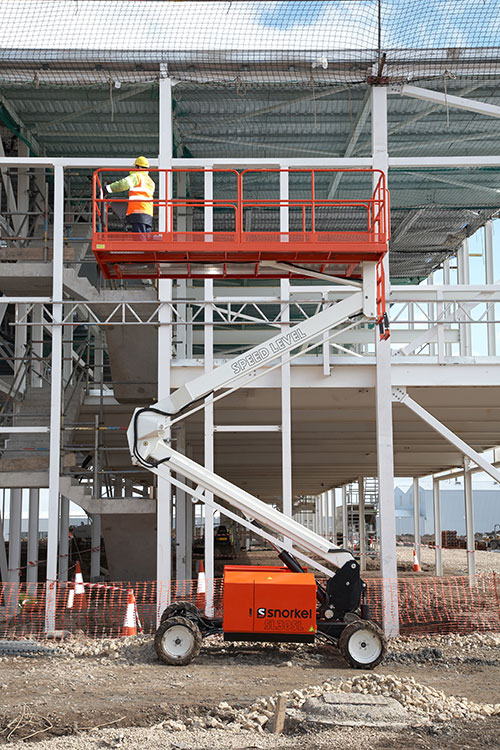

The Snorkel SL30RT Speed Level sigma boom lift makes the grade. Automatic self-leveling without outriggers offers a stable platform that can level up to 13° from side-to-side and up to 9° from front-to-back. Drivable at full height on powerful 4-wheel drive, the SL30RT tackles all terrains with ease, even on compound slopes.

Standard Features

  • Automatic powered platform leveling
  • Powerful 4 wheel drive
  • Oscillating front axle
  • High grip, open tread deck
  • Descent alarm
  • High grip, all-terrain tires
  • Dual multi-disc brakes
  • Proportional controls
  • Flashing amber light
  • Power line to platform
  • Fold-down guardrails
  • All motion alarm
  • Hour meter & on-board diagnostics display
  • Horn
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

11.0m

Max Platform Height

9.0m

Platform Size (stowed)

1.72m x 4.23m

Platform Size (extended)

n/a

Extension Deck Length

n/a

Overall Width

2.13m

Overall Length

4.3m

Stowed Height

2.6m

Min Height (guardrails folded)

1.7m

Chassis Ground Clearance

305mm

Axle Ground Clearance

195mm

Platform Capacity (SWL)

590kg

Max Drive Height

9.0m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

6.4km/h

Max Drive Speed (elevated)

0.8 km/h

Raise/Lower Time

24/36 seconds

Gradeability

50%

Max Outrigger Leveling (front to rear)

Max Outrigger Leveling (side to side)

13º

Inside Turning Radius

3.9m

Outside Turning Radius

5.64m

Tyres

26 x 12.00 – 12 foam filled

Controls

proportional joystick

Drive System

4 wheel drive with hydraulic motors and flow dividers

Power Source

Kubota D-902 water-cooled diesel engine Tier 4 Final

Weight

3,400kg

Options

  • Special paint colors
  • Diesel exhaust scrubber
  • Flashing amber light
  • Tunnel package
  • Environmental hydraulic oil
  • Hydraulic generator 110/240V 2kW
  • Platform overload system
  • Non-marking tires
  • Extreme environment package
  • Snorkel OnSite™ telematics

Levelling Capabilities

SL26SL/SL30SL Leveling Capabilities

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
