SL26RT

  • Max. working height: 10.0m
  • Platform capacity (SWL): 680kg
  • Stowed Height: 2.6m
  • Weight: 3,500kg

Download Specifications (PDF)

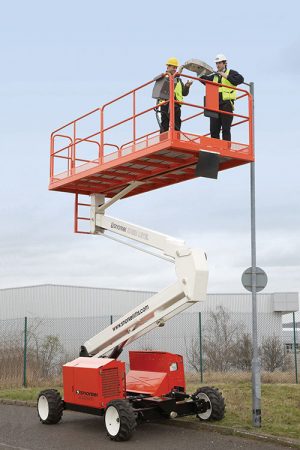

The Snorkel SL26RT Speed Level is the original sigma boom lift. Climbing gradients up to 50% and featuring automatic self-leveling without outriggers, it offers superior stability. This Speed Level also features an extension deck for additional outreach. With superb ground clearance and powerful 4-wheel drive, the SL26RT can handle any jobsite.

Standard Features

  • Automatic powered platform leveling
  • Powerful 4 wheel drive
  • Oscillating front axle
  • Roll-out deck extension
  • Descent alarm
  • High grip, all-terrain tires
  • Dual multi-disc brakes
  • Proportional controls
  • Power line to platform
  • Fold-down guardrails
  • All motion alarm
  • Hour meter & on-board diagnostics display
  • Horn
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

10.0m

Max Platform Height

8.0m

Platform Size (stowed)

1.72m x 3.66m

Platform Size (extended)

1.72m x 4.6m

Extension Deck Length

0.91m

Overall Width

2.13m

Overall Length

3.79m

Stowed Height

2.6m

Min Height (guardrails folded)

1.7m

Chassis Ground Clearance

305mm

Axle Ground Clearance

193mm

Platform Capacity (SWL)

680kg

Max Drive Height

8.0m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

6.4km/h

Max Drive Speed (elevated)

0.8 km/h

Raise/Lower Time

21/32 seconds

Gradeability

50%

Max Outrigger Leveling (front to rear)

Max Outrigger Leveling (side to side)

13º

Inside Turning Radius

3.9m

Outside Turning Radius

5.64m

Tyres

26 x 12.00 – 12 foam filled

Controls

proportional joystick

Drive System

4 wheel drive with hydraulic motors and flow dividers

Power Source

Kubota D-902 water-cooled diesel engine Tier 4 Final

Weight

3,500 kg

Options

  • Special paint colors
  • Diesel exhaust scrubber
  • Flashing amber light
  • Tunnel package
  • Environmental hydraulic oil
  • Hydraulic generator 110/240V 2kW
  • Platform overload system
  • Non-marking tires
  • Aluminum platform floor
  • Extreme environment package

Levelling Capabilities

SL26SL/SL30SL Leveling Capabilities

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
