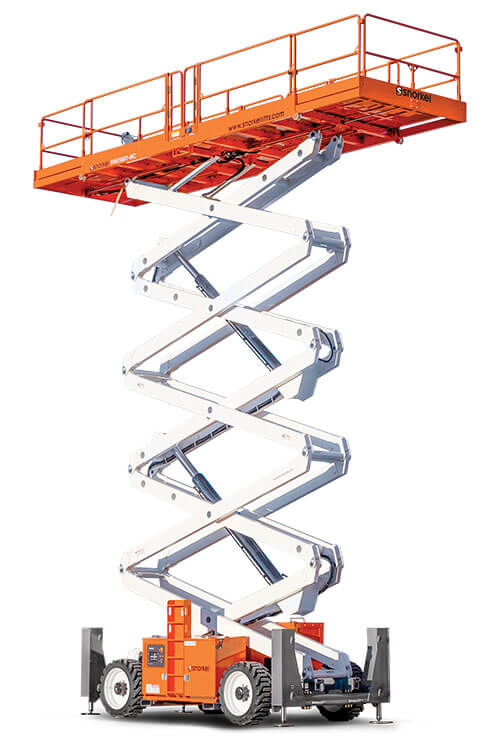

S9070RT-HC

  • Max. working height: 23.3m
  • Platform capacity (SWL): 907kg
  • Stowed Height: 3.43m
  • Weight: 11,566kg

Download Specifications (PDF)

The Snorkel S9070RT-HC is the largest ultra-capacity rough terrain scissor lift in North America. Featuring a twin extension deck as standard, it combines a large platform working area with an extra-wide pallet gate and high lifting capacity for increased productivity on the job. Added rough terrain capabilities makes the S9070RT-HC a premier performer on all jobsites.

Standard Features

  • 4 wheel drive
  • Roll-out deck extension
  • 4 hydraulic stabilizers with automatic leveling
  • Non-marking foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Articulating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty
Max Working Height

23.3m

Max Platform Height

21.3m

Platform Size (stowed)

4.87m x 2.28m

Platform Size (extended)

8.23m x 2.28m

Extension Deck Length

1.37m

Overall Width

2.28m

Overall Length

4.87m

Stowed Height

3.43m

Min Height (guardrails folded)

2.5m

Chassis Ground Clearance

356mm

Platform Capacity (SWL)

907kg

Max Drive Height

13.4m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

6.7km/h

Max Drive Speed (elevated)

0.96km/h

Raise/Lower Time

70/40 seconds

Gradeability

50%

Max Outrigger Leveling (front to rear)

Max Outrigger Leveling (side to side)

14º

Inside Turning Radius

2.4m

Outside Turning Radius

5.6m

Tyres

13 x 36 foam filled

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota diesel engine

Weight

11,566kg

Options

  • Special paint colours
  • Hydraulic generator 110V 2kW
  • Hydraulic generator 12kW
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil

Turning Radius

S9031RT-HC/S9043RT-HC turning radius

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
