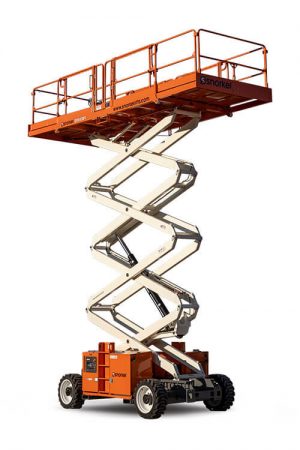

Snorkel S9043RT

S9033RT

  • Max. working height: 11.8m
  • Platform capacity (SWL): 1,135kg
  • Stowed Height: 2.97m
  • Weight: 6,759kg

Download Specifications (PDF)

Request a Quote

The new Snorkel S9033RT high capacity rough terrain scissor lift measures up. A spacious roll-out deck extension with superb lift capacity makes it easy to work at height. Excellent ground clearance, a tight inside turning radius and powerful 4-wheel drive tackle rough terrain with ease.

Standard Features

  • 4 wheel drive
  • Single powered deck extension
  • Foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Locking, oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Flashing amber light (x2)
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty
Max Working Height

11.8m
Max Platform Height

9.8m
Platform Size (stowed)

3.58m x 2.28m
Platform size (single deck extended)

5.33m x 2.28m
Platform size (dual deck extended)

6.65m x 2.28m
Extension Deck Length

1.44m
Overall Width

2.28m
Overall Length

4.77m
Stowed Height

2.97m
Min Height (guardrails folded)

1.98m
Ground Clearance

274mm
Platform Capacity (SWL)

1,135kg
Max Drive Height

9.8m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

6.7km/h
Max Drive Speed (elevated)

0.8km/h
Raise/Lower Time

45/30 seconds
Gradeability

50%
Max Outrigger Leveling (front to rear)

7º
Max Outrigger Leveling (side to side)

12º
Inside Turning Radius

2.03m
Outside Turning Radius

5.28m
Tyres

12 x 33 foam filled
Controls

proportional joystick
Drive System

4 wheel drive
Power Source

Kubota diesel engine
Weight

6,759kg

Options

  • Special paint colors
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Dual fuel
  • Cold weather package (block heater + battery warm up)
  • Dual powered extension decks
  • Dual manual extension decks
  • Hydraulic generator 110V 2kW
  • 12kW generator package
  • Non-marking foam filled tires
  • 4 hydraulic stabilizers with automatic levelling
  • Snorkel OnSite™ telematics

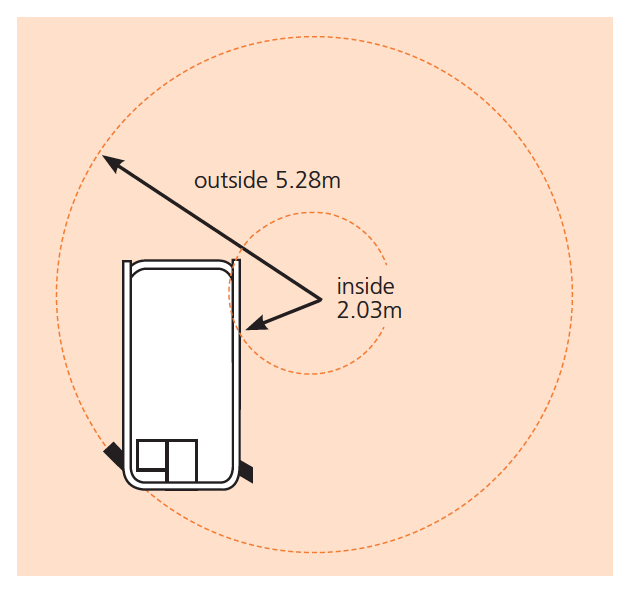

Turning Radius

S9033RT/S9043RT/S9053RT turning radius

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
