S9031RT-HC

  • Max. working height: 11.4m
  • Platform capacity (SWL): 1,814kg
  • Stowed Height: 2.77m
  • Weight: 6,803kg

Download Specifications (PDF)

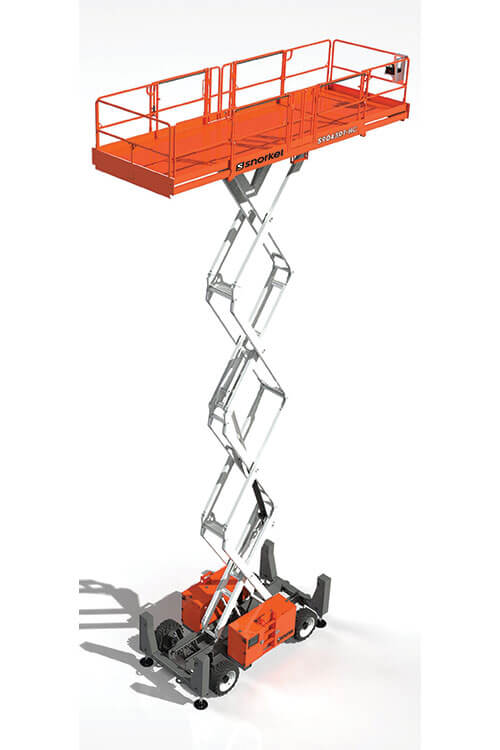

The Snorkel S9031RT-HC ultra-capacity rough terrain scissor lift is ideal for heavy lifting. Its robust construction offers best-in-class lift capacity. With a twin extension deck and pallet gate, offering an extra-wide 6.5 ft. (1.9m) opening, tools and materials can be easily lifted. The S9031RT-HC also features excellent off-road capability, suitable for tough environments.

Standard Features

  • 4 wheel drive
  • Dual powered extension decks
  • 4 hydraulic stabilizers with automatic leveling
  • Non-marking foam filled tires
  • Proportional controls
  • Foam filled tires
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Locking, oscillating axle
  • Fold-down guardrails
  • Flashing amber light
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty
Max Working Height

11.4m

Max Platform Height

9.4m

Platform Size (stowed)

4.87m x 2.28m

Platform Size (extended)

8.23m x 2.28m

Extension Deck Length

1.37m

Overall Width

2.28m

Overall Length

4.87m

Stowed Height

2.77m

Min Height (guardrails folded)

1.9m

Chassis Ground Clearance

356mm

Platform Capacity (SWL)

1,814kg

Max Drive Height

9.4m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

6.7km/h

Max Drive Speed (elevated)

0.3m/s

Raise/Lower Time

30/20 seconds

Gradeability

50%

Max Outrigger Leveling (front to rear)

Max Outrigger Leveling (side to side)

14º

Inside Turning Radius

2.4m

Outside Turning Radius

5.6m

Tyres

13 x 36 foam filled

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota diesel engine

Weight

6,803kg

Options

  • Special paint colors
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Dual fuel
  • Non-marking foam filled tires
  • Cold weather package (block heater + battery warm up)
  • Hydraulic generator 110V 2kW
  • 12kW generator package
  • Snorkel OnSite™ telematics

Levelling Capabilities

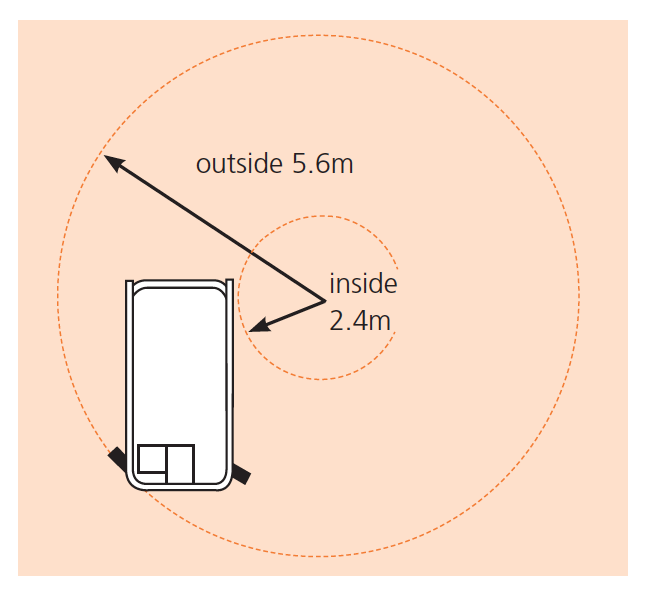

S9031RT-HC/S9043RT-HC turning radius

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
