S4732E

  • Max. working height: 11.8m
  • Platform capacity (SWL): 317kg
  • Stowed Height: 2.39m
  • Weight: 2,693kg

Download Specifications (PDF)

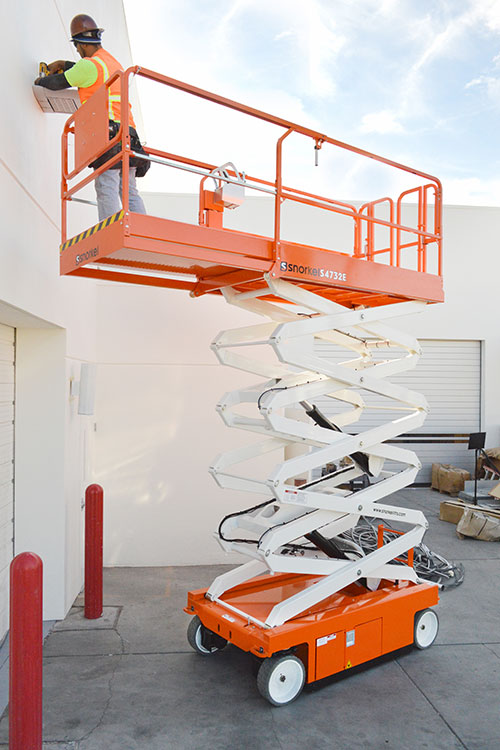

The Snorkel S4732E is part of the Snorkel electric scissor family, lifting up to 11.8m. A spacious roll-out deck extension with saloon-door style entry gates maximizes the platform working area. Deep cycle batteries ensure the lift works as long as you do, and a robust all-steel construction means it will keep on working for years to come too.

Standard Features

  • Roll-out deck extension with dual locks
  • Non-marking tires
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • Proportional controls, including descent
  • 3 persons indoor
  • 2 persons indoor
  • 1 person outdoor
  • Loading pendant
  • Power line to platform
  • Platform overload system
  • Flashing amber light
  • Hour meter & on-board diagnostic display
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachment points
  • Scissor stack roller slide plates (set of 2)
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

11.8m

Max Platform Height

9.8m

Platform Size (stowed)

1.09m x 2.14m

Platform Size (extended)

1.09m x 3.36m

Extension Deck Length

1.21m

Overall Length (with step)

2.3m

Overall Length (without step)

2.26m

Overall Width

1.19m

Stowed Height

2.39m

Min Height (guardrails folded)

1.94m

Ground Clearance (stowed)

66mm

Ground Clearance (elevated)

19mm

Platform Capacity (SWL)

317kg

Max Drive Height

9.8m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

3.2 km/h

Max Drive Speed (elevated)

0.6 km/h

Raise/Lower Time

50 / 58 sec

Gradeability

25%

Inside Turning Radius

0.25m

Outside Turning Radius

2.41m

Tyres

15 x 5 non-marking rubber

Controls

proportional

Drive System

2 wheel drive

Power Source

24V DC battery electric

Charger

90 – 240V, 25amp

Weight

2,591kg

Options

  • Special paint colors
  • 110V AC 800W inverter
  • Airline to platform
  • Aircraft bumpguard package
  • Panel carrier
  • Environmental hydraulic oil
  • Snorkel Guard™ secondary guarding system
  • Snorkel OnSite™ telematics
  • Pipe rack
  • Top rail

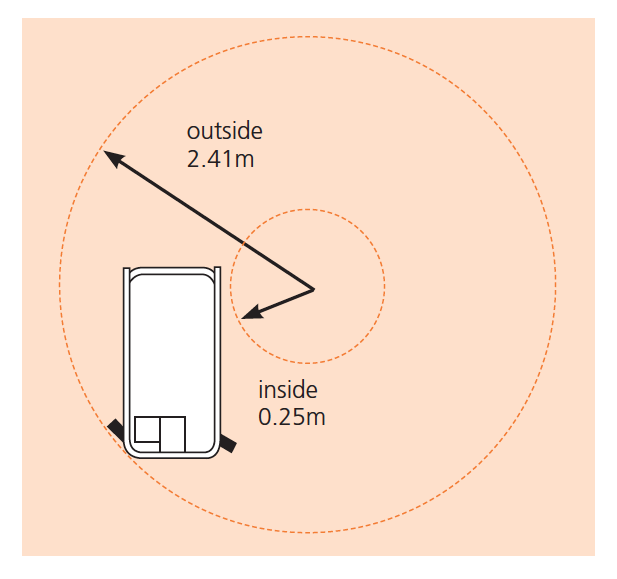

Turning Radius

Snorkel S4726E/S4732E Turning Radius

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
