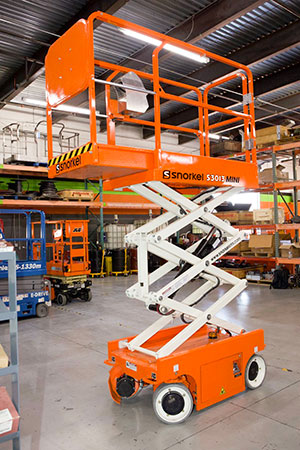

S3013 Mini

  • Working height: 6m
  • Platform capacity: 272kg
  • Stowed Height: 1.85m
  • Weight: 952kg

Designed to address specific needs in the low-level scissor lift market, the S3013 Mini electric drive scissor lift is suitable for indoor and outdoor use and fits through a standard doorway. A roll-out deck extension and 600 lb maximum platform capacity make this model ideal for two people or one person plus materials. A deep-cycle 24V DC battery and non-marking solid rubber tires enable clean and quiet indoor use.

Standard Features

  • Fully electric drive
  • Fully electric steer
  • Zero inside turning radius
  • No hydraulic hoses
  • Roll-out deck extension with dual locks
  • Non-marking tires
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • 2 persons indoors
  • 1 person outdoors
  • Proportional controls, including descent
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Integrated battery charger
  • Battery condition indicator
  • Platform overload system
  • Flashing amber strobe
  • ANSI A92.20 compliant
  • Largest tires / wheels in its class
  • Heavy-duty spindles and steering mechanism
  • Robust aluminum fixed control box
  • Crane & forklift points
  • Lanyard attachment points
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

6m

Max Platform Height

4m

Platform Size (stowed)

0.75m x 1.32m

Platform Size (extended)

0.75m x 1.93m

Deck extension length

0.61m

Overall Length (with step)

1.44m

Overall Length (without step)

1.39m

Overall Width

0,76 m

Stowed Height

1.85m

Min. Height (Guardrails Folded)

1.59m

Ground Clearance (stowed)

66mm

Ground Clearance (elevated)

16mm

Platform Capacity (SWL)

272kg

Max Drive Height

5.79m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.0km/h

Max Drive Speed (elevated)

0.8km/h

Raise/Lower Time

20 / 35 seconds

Gradeability

25%

Inside Turning Radius

0.13m

Outside Turning Radius

1.47m

Tyres

322.58mm x 101.6mm non-marking solid rubber

Controls

proportional

Drive System

2 wheel electric drive

Power Source

24V DC battery electric

Charger

90 – 240V, 25amp

Weight

952kg

Options

  • Airlinetoplatform
  • Environmental hydraulic oil
  • Flashing amber strobe
  • Special paint colors
  • Snorkel Guard™ secondary guarding system

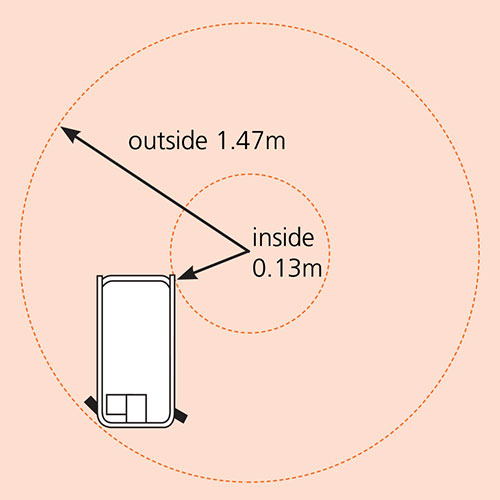

Turning Radius

S3013e Emea

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
