S3010E

  • Max. working height: 5.0m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 1.8m
  • Weight: 495kg

Download Specifications (PDF)

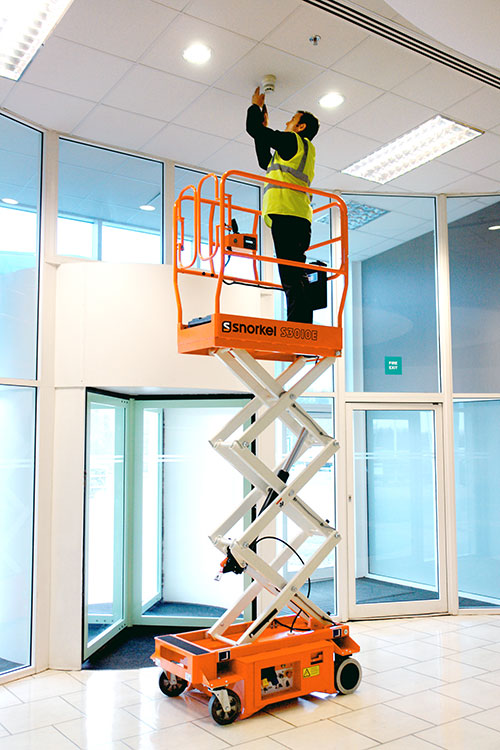

Ideal for low level interior maintenance and construction duties, the Snorkel S3010E is a versatile yet compact 5.0m self-propelled mini scissor lift. Simple to operate, the S3010E is equipped with skid-steer and boasts a zero inside turning radius – perfect for working in confined spaces and narrow aisles.

Standard Features

  • Highly maneuverable skid steer
  • Zero inside turning radius
  • Saloon-door style entry gates
  • 1 person indoors
  • Non-marking tires
  • Proportional point & go joystick controls
  • Integrated battery charger
  • Battery condition indicator
  • Crane points & through-the-chassis fork pockets
  • Selectable motion alarm
  • Tilt & descent alarm
  • Hour meter
  • Horn
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

5.0m

Max Platform Height

3.0m

Platform Size

1.09m x 0.51m

Overall Length

1.26m

Overall Width

0.77m

Stowed Height

1.8m

Ground Clearance

58mm

Platform Capacity (SWL)

227kg

Max Drive Height

3.0m

Max Wind Speed

0m/s

Max Drive Speed (stowed)

3.5 km/h

Max Drive Speed (elevated)

0.64km/h

Raise/Lower Time

18/25 seconds

Gradeability

25%

Max Operating Slope

Inside Turning Radius

0m

Outside Turning Radius

1.4m

Tyres

230mm dia. non-marking rubber

Parking Brake

2 wheel automatic

Controls

2-axis proportional joystick

Drive System

DC direct drive

Power Source

2 x 12V 105Ah

Battery Charger

100-240V 50/60Hz Auto, 30 amp

Weight

495kg

Options

  • Special paint colors
  • Environmental hydraulic oil

Turning Radius

S3010E Turning Radius

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
