S2770RT

  • Max. working height: 10.1m
  • Platform capacity (SWL): 580kg
  • Stowed Height: 2.61m
  • Weight: 2,886kg

Download Specifications (PDF)

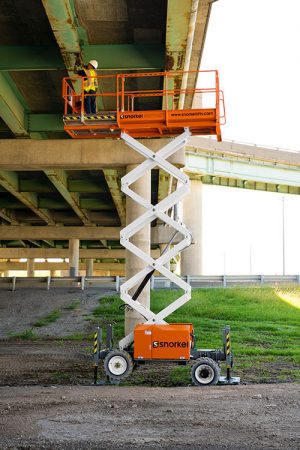

The Snorkel S2770RT is a compact diesel rough terrain scissor lift which delivers excellent rough terrain performance. Compact dimensions mean that it is ideal for working in confined outdoor spaces and it features a roll-out deck extension for additional reach.

Standard Features

  • 4 wheel drive
  • Roll-out deck extension
  • 4 hydraulic stabilizers with automatic leveling
  • Non-marking foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty
Max Working Height

10.1m

Max Platform Height

8.1m

Platform Size (stowed)

1.6m x 2.8m

Platform Size (extended)

1.6m x 4.0m

Deck Extension

1.2m

Overall Width

1.8m

Overall Length

3.4m

Stowed Height

2.61m

Min Height (guardrails folded)

1.83m

Ground Clearance

330mm

Platform Capacity (SWL)

580kg

Max Drive Height

8.1m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.5 km/h

Max Drive Speed (elevated)

0.5 km/h

Raise/Lower Time

26/30 seconds

Gradeability

35 %

Max Outrigger Leveling (front to rear)

Max Outrigger Leveling (side to side)

10º

Inside Turning Radius

2.7m

Outside Turning Radius

5.0m

Tyres

27 x 10.5 – 15 non-marking foam filled

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota D-902 water-cooled diesel 22.5hp – Tier 4 Final

Weight

2,886kg

Options

  • Special paint colors
  • Hydraulic generator 110V 2kW
  • Dual fuel
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Cold weather package (block heater + battery warm up)
  • Turf/Floatation tires
  • Snorkel OnSite™ telematics

Turning Radius

S2270RT/S3370RT/S3970RT turning radius

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
