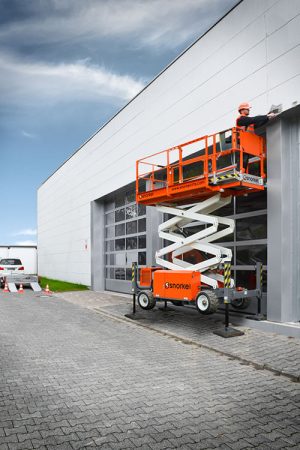

S2255RT

  • Max. working height: 8.5m
  • Platform capacity (SWL): 420kg
  • Stowed Height: 2.35m
  • Weight: 2,410kg

Download Specifications (PDF)

Standard Features

  • 4 wheel drive
  • 4 hydraulic stabilizers with automatic leveling
  • Roll out deck extension
  • Non-marking foam filled tires
  • Proportional controls
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Oscillating axle
  • Manual lowering valve
  • Flashing amber light
  • Dual lanyard attachment points
  • Hour meter
  • 2 years parts & labor, 5 year structural warranty
Max Working Height

8.5m

Max Platform Height

6.5m

Platform Size (stowed)

1.4m x 2.73m

Platform Size (extended)

1.4m x 3.93m

Deck Extension

1.2m

Overall Width

1.45m

Overall Length

3.3m

Stowed Height

2.35m

Min Height (guardrails folded)

2.0m

Ground Clearance

260mm

Platform Capacity (SWL)

420kg

Max Drive Height

6.2m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

5.2km/h

Max Drive Speed (elevated)

0.66km/h

Raise/Lower Time

26/30 seconds

Gradeability

35%

Max Outrigger Leveling (front to rear)

Max Outrigger Leveling (side to side)

10º

Inside Turning Radius

2.5m

Outside Turning Radius

4.75m

Exit/Entry Angle

20°

Tyres

0.58m x 0.22m – 12 non-marking

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota diesel engine

Weight

2,410kg

Options

  • Special paint colors)
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Cold weather package (block heater + battery warm-up)
  • Snorkel OnSite™ telematics

Turning Radius

S2255RT Turning Radius

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
