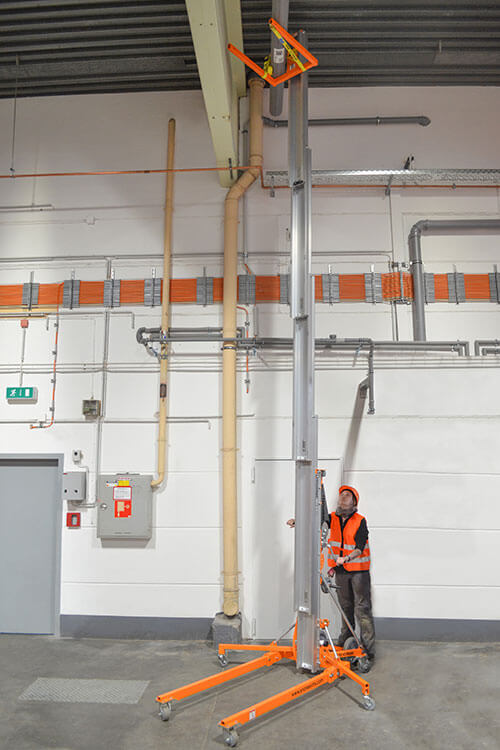

ML20I

  • Lift height – forks up: 6.2m
  • Lift height – forks down: 5.7m
  • Stowed Height: 1.9m
  • Weight: 150kg

Download Specifications (PDF)

Standard Features

  • Stabilizers with non-marking swivel casters
  • Dual handle, two-speed shift-on-the-fly winch
  • Metal cable pulleys with sealed bearings
  • Heavy-gauge aluminium extrusions
  • Heavy-duty, non-marking casters
  • Crane attachment point
  • Cable guard
  • Mast brake
  • 2 year parts & labour, 5 year structural warranty
Lift Height (forks up)

6.2m

Lift Height (forks down)

5.7m

Stowed Width

0.77m

Stabiliser Width

1.63m

Stowed Length

0.8m

Operating Length

1.96m

Stowed Height

1.9m

Fork Width (outside)

0.58m

Fork Length

0.76m

Ground Clearance

60mm

Max. Load Capacity (0.36m load centre)

340kg

Max. Load Capacity (0.61m load centre)

249kg

Max. Load Capacity (1.07m load centre)

136kg

Min. Load Height

150mm

Winch (high speed)

13.1 cranks/m

Winch (low speed)

49.2 cranks/m

Weight

150kg

Options

  • Special paint colors
  • Adjustable forks
  • Fork extensions
  • Boom
  • Pipe cradle
  • Load platform
  • Non-marking rear wheel transport package
  • Smart latch

Loading Capacity

Snorkel ML20I/ML25I Loading Capacity

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
