ML18C

  • Lift height – forks up: 5.6m
  • Lift height – forks down: 5.1m
  • Stowed Height: 2.2m
  • Weight: 141kg



Download Specifications (PDF)

Standard Features

  • Stabilizers with non-marking swivel casters
  • Non-marking transport/loading wheels
  • Dual handle, two-speed shift-on-the-fly winch
  • Metal cable pulleys with sealed bearings
  • Heavy-gauge aluminum extrusions
  • Heavy duty non-marking casters
  • Quick-fold stabilizers
  • Crane attachment point
  • Cable guard
  • Smart latch system
  • Mast brake
  • 2 year parts & labor, 5 year structural warranty
Lift Height (forks up)

5.6m

Lift Height (forks down)

5.1m

Stowed Width

0.77m

Stabiliser Width

1.63m

Stowed Length

0.85m

Operating Length

1.86m

Stowed Height

2.2m

Fork Width (outside)

0.58m

Fork Length

0.76m

Ground Clearance

60mm

Max. Load Capacity (0.36m load centre)

318kg

Max. Load Capacity (0.61m load centre)

200kg

Max. Load Capacity (1.07m load centre)

84kg

Min. Load Height

150mm

Winch (high speed)

13.1 cranks/m

Winch (low speed)

49.2 cranks/m

Weight

141kg

Options

  • Special paint colors
  • Adjustable forks
  • Fork extensions
  • Boom
  • Pipe cradle
  • Load platform

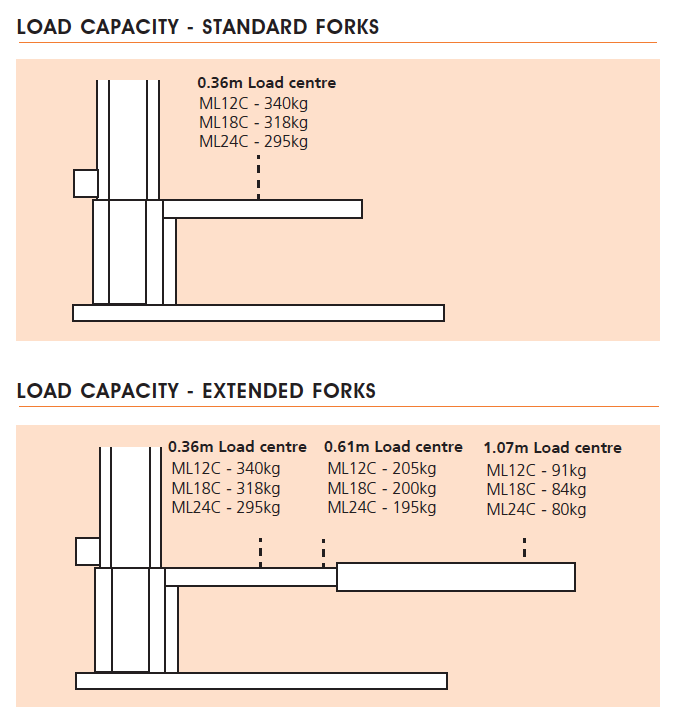

Loading Capacity

ML12/ML18/ML24C Loading Capacity

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
