AB80J

  • Max. working height: 26.3m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 3.0m
  • Weight: 16,692kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

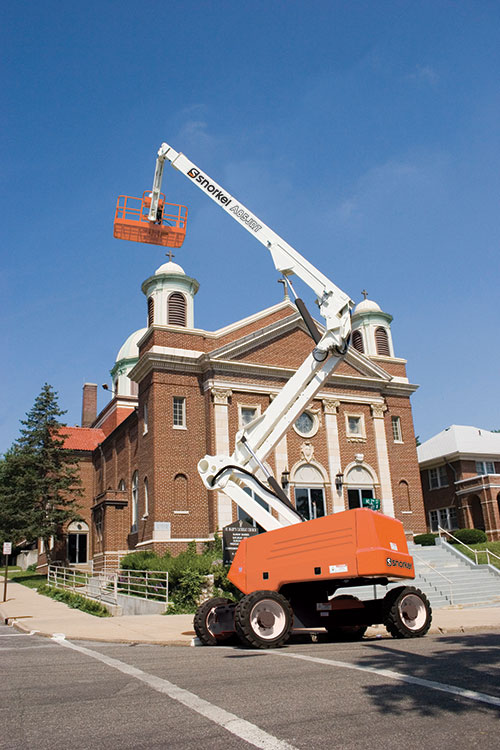

The Snorkel AB80J is the ultimate diesel articulated boom lift. Capable of lifting 227kg to a working height of 26.3m, the AB80J delivers excellent aerial maneuverability with ‘up and over’ capabilities and a jib boom. In addition, the AB80J has impressive rough terrain performance, boasting both 4 wheel drive and 4 wheel steer, including crab steer.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Hydraulic platform rotation
  • Four wheel drive, steer and crab steer
  • Foam filled lug tires
  • 360° continuous turntable rotation
  • Proportional drive, lift & swing, extend & rotate
  • Drive motion alarm
  • Flashing amber light
  • Horn
  • Dual lanyard attachment points
  • Power line to platform
  • 5° tilt alarm
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

26.3m

Max Platform Height

24.3m

Max Working Outreach

18.1m

Clearance Height at Max Outreach

8.5m

Platform Size

2.44m x 0.91m

Overall Width

2.6m

Overall Length

9.8m

Stowed Height

3.0m

Ground Clearance

330mm

Platform Capacity (SWL)

227kg

Max Drive Height

24.3m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.8 km/h

Max Drive Speed (elevated)

1.0 km/h

Jib Length

1.5m

Jib Arc

140º (+70º/-70º)

Jib Rotation

n/a

Platform Rotation

150º

Superstructure Rotation (continuous)

360º

Tailswing

0.89m

Raise/Lower Time

240/240 seconds

Gradeability

30%

Inside Turning Radius

2.4m

Outside Turning Radius

4.7m

Tyres

15 x 625 foam filled lug

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota V2403 65hp diesel – Tier 4 Final

Weight

16,692kg

Options

  • Special paint colors
  • Airline to platform
  • Non-marking tires
  • AC generator 110V/240V 2kW
  • Environmental hydraulic oil
  • Tool Tray
  • Pipe rack

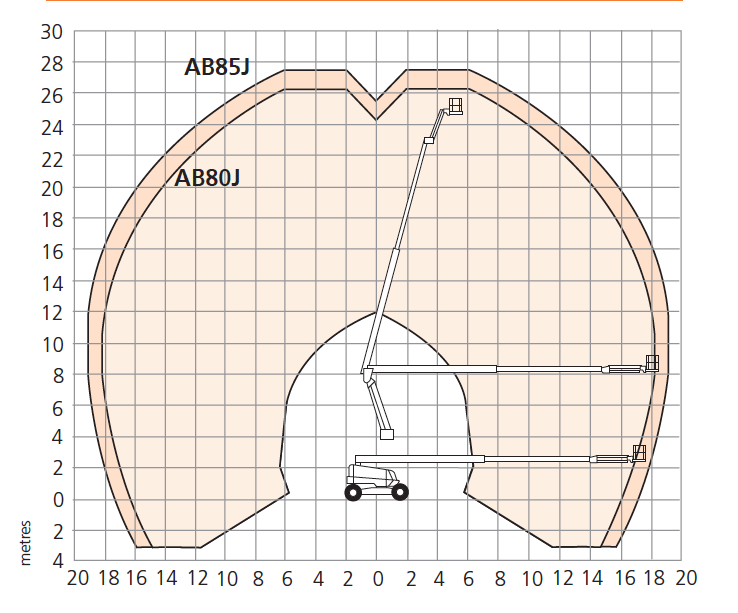

Working Envelope

AB80J/AB85J Working Environment

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
