A46JRT

  • Max. working height: 16.3m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 2.16m
  • Weight: 7,540kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

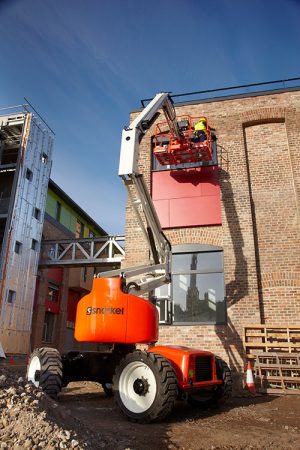

Class-leading diesel articulated boom lift delivering a superb working envelope and excellent 4 wheel drive performance. Zero tailswing and a tight turning radius make this lift ideal for working in confined spaces or on a busy jobsite, and the powerful diesel engine and high grip tyres ensure that the A46JRT can tackle almost any type of terrain.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Multi-function proportional controls
  • Oscillating front axle
  • Tri-entry platform
  • Foam filled lug tires
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Tilt alarm
  • Horn
  • Drive motion alarm
  • Flashing amber light
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

16.3m

Max Platform Height

14.3m

Max Horizontal Outreach

7.35m

Clearance Height at Max Outreach

7.67m

Platform Size

1.0m x 1.83m

Chassis Width

2.1m

Overall Length

5.7m

Stowed Height

2.16m

Ground Clearance

330mm

Platform Capacity (SWL)

227kg

Max Drive Height

14.3m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

5.1km/h

Max Drive Speed (elevated)

1.3km/h

Jib Length

1.5m

Jib Arc

140º

Platform Rotation

160º

Superstructure rotation

360° non-continuous

Tailswing

0m

Raise/Lower Time

101/98 seconds

Gradeability

45%

Inside Turning Radius

0.81m

Outside Turning Radius

3.17m

Tyres

foam filled lug 355/55D625

Controls

proportional

Drive System

4 wheel drive

Power Source

Kubota V1505 24.9hp diesel – T4F

Weight

7,540kg

Options

  • Special paint colors
  • Airline to platform
  • Non-marking tires
  • Pneumatic tires
  • 5´ aluminum platform swing gate
  • AC generator 110V/240V 2kW
  • Environmental hydraulic oil
  • Tool tray
  • Platform overload system
  • Pipe rack

Working Envelope

A46JE/A46JRT Working Envelope

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
